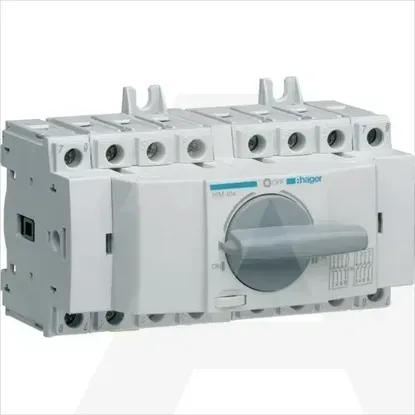

HIM404
Code: 1761890
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Version as reversing switchYes
Version as safety switchYes
Rated permanent current Iu40A
Max. rated operation voltage Ue AC415V
Rated operating voltage380 - 415V
Version as main switchYes
Rated permanent current at AC-23, 400 V40A
Version as maintenance-/service switchYes
Number of switches1
Rated short-time withstand current lcw1.26kA
Rated permanent current at AC-21, 400 V40A
Rated operation power at AC-23, 400 V18kW
Version as emergency stop installationNo
Number of auxiliary contacts as normally closed contact0
Number of poles4
Motor drive optionalNo
Switching power at 400 V26kW
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Suitable for distribution board installationYes
Conditioned rated short-circuit current Iq50kA
Suitable for floor mountingYes
Colour control elementGrey
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
InterlockableYes
Suitable for front mounting 4-holeNo
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)Other
Degree of protection (IP), front sideIP20
Type of control elementShort thumb-grip
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
