Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •HAGER

Technical specifications

Version as main switchYes
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Max. rated operation voltage Ue AC415V
Rated permanent current Iu63A
Version as safety switchYes
Rated operating voltage380 - 415V
Number of switches1
Rated operation power at AC-23, 400 V28kW
Number of poles4
Switching power at 400 V41kW
Rated permanent current at AC-21, 400 V63A
Rated permanent current at AC-23, 400 V63A
Version as reversing switchYes
Motor drive optionalNo
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq50kA
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Rated short-time withstand current lcw1.5kA
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Suitable for floor mountingYes
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP20
Type of control elementShort thumb-grip
Colour control elementGrey
InterlockableYes
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

HIM406

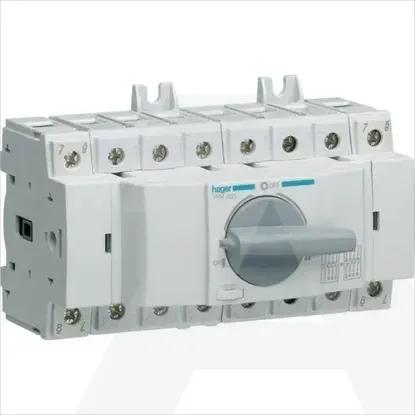

Main Product Image

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • HAGER

Technical specifications

Version as main switch

Version as maintenance-/service switch

Version as emergency stop installation

Max. rated operation voltage Ue AC

415V

Rated permanent current Iu

63A

Version as safety switch

Rated operating voltage

380 .. 415V

Number of switches

1

Rated operation power at AC-23, 400 V

28kW

Number of poles

4

Switching power at 400 V

41kW

Rated permanent current at AC-21, 400 V

63A

Rated permanent current at AC-23, 400 V

63A

Version as reversing switch

Motor drive optional

Number of auxiliary contacts as normally open contact

0

Conditioned rated short-circuit current Iq

50kA

Motor drive integrated

Number of auxiliary contacts as normally closed contact

0

Rated short-time withstand current lcw

1.5kA

Number of auxiliary contacts as change-over contact

0

Voltage release optional

Suitable for floor mounting

Device construction

Built-in device fixed built-in technique

Suitable for front mounting 4-hole

Suitable for intermediate mounting

Suitable for front mounting centre

Suitable for distribution board installation

Type of electrical connection of main circuit

Screw connection

Degree of protection (IP), front side

IP20

Type of control element

Short thumb-grip

Colour control element

Grey

Interlockable

Degree of protection (NEMA)

Other
