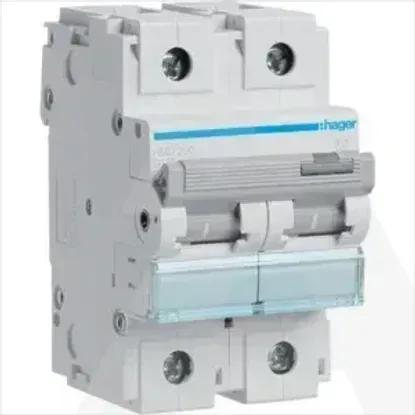

HMD299
Code: 1761910
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •HAGER
Technical specifications
Current limiting class-
Rated impulse withstand voltage Uimp6kV
Rated voltage415V
Voltage typeAC
Rated insulation voltage Ui500V
Rated current125A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Pollution degree3
Built-in depth70mm
Number of poles (total)2
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired1 - 50mm²
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Flush-mounted installationYes
Power loss21W
Ambient temperature during operating-25 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Over voltage category3
Explosion-proofNo
Width in number of modular spacings3
Connectable conductor cross section solid-core1 - 70mm²
Release characteristicD
Frequency50 - 60Hz
