Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •HAGER
Technical specifications
Pollution degree2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V30kA
Voltage typeAC
Width in number of modular spacings4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated voltage400V
Rated current25A
Release characteristicB
Frequency50 - 60Hz
Degree of protection (IP)IP20
Number of protected poles4
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Over voltage category3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Built-in depth70mm
Current limiting class3
Suitable for flush-mounted installationYes
Concurrently switching neutral conductorNo
Number of poles (total)4
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

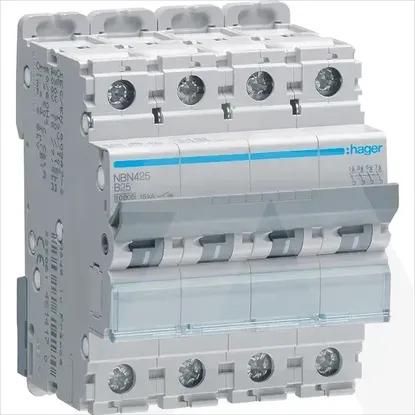

NBN425
