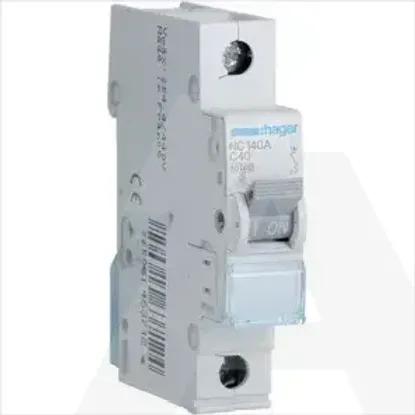

NC140A
Code: 1762717
ManufacturerHager
Catalog numberNC140A
TypeNC140A
CategoryMiniature circuit breaker (MCB)
EAN code3250614637124
Details
- •Automatski osigura? 1P 10kA C-40A 1 mod.
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •HAGER
Technical specifications
Current limiting class3
Voltage typeAC
Built-in depth70mm
Rated voltage400V
Width in number of modular spacings1
Frequency50 - 60Hz
Pollution degree2
Over voltage category3
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Additional equipment possibleNo
Suitable for flush-mounted installationYes
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated current40A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
