Details
- •Circuit breakers and fuses

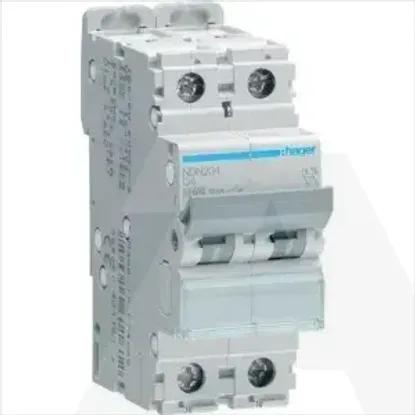

- •Miniature circuit breaker (MCB)
- •1 KOM
- •HAGER
Technical specifications
Rated current4A
Rated voltage400V
Voltage typeAC
Built-in depth70mm
Over voltage category3
Pollution degree2
Width in number of modular spacings2
Frequency50 - 60Hz
Release characteristicD
Concurrently switching neutral conductorNo
Current limiting class-
Degree of protection (IP)IP20
Number of protected poles2
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V30kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
NDN204
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- HAGER
DetailsTechnical specificationsRelated products
Technical specifications
Rated current
4A
Rated voltage
400V
Voltage type
AC
Built-in depth
70mm
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
2
Frequency
50 .. 60Hz
Release characteristic
D
Concurrently switching neutral conductor
Current limiting class
-
Degree of protection (IP)
IP20
Number of protected poles
2
Additional equipment possible
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Suitable for flush-mounted installation
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Number of poles (total)
2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
30kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
