Details
- •Installation bus systems
- •Movement sensor for bus system
- •1 KOM
- •HAGER
Technical specifications
Mounting methodOther
ColourWhite
Width95mm
Surface protectionUntreated
Depth99mm
Creep-under protectionNo

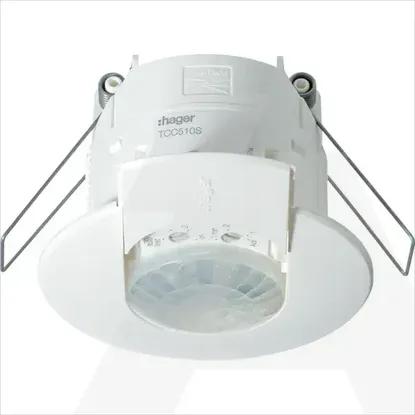

ModelPresence detector
Number of channels1
Height83mm
Built-in depth83mm
Switching power-W
Built-in diameter68mm
Built-in width95mm
Staircase monitoringNo
Material qualityThermoplastic
Bus system KNXYes
Other bus systemsNone
MaterialOther
RAL-number (similar)9010
Max. transmission range frontally7m
Substation inputNo
Bus system PowernetNo
With bus connectionNo
Bus system radio frequentNo
Bus system LONNo
Built-in length99mm
Teach-function for response value luminosityNo
Operation mode switchNo
Diameter detection range on floor7m
Diameter68mm
Max. transmission range sideways8m
With connection cableNo
TransparentNo
Animal zoneYes
Surface finishingMatt
Detection angle vertical55 - 55°
Min. switch-on time5s
Bus system KNX radioNo
Min. depth of built-in installation box30mm
Max. duty cycle480min
With acoustic sensorNo
Suitable for ceiling mountingYes
Switch-off delay self-learningNo
Radio frequent bidirectionalNo
Detection angle horizontal360 - 360°
DALI-2 certifiedNo
Optimum mounting height4m
Response value luminosity adjustableNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
TCC510S
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Installation bus systems
- Movement sensor for bus system
- 1 KOM
- HAGER
DetailsTechnical specifications
Technical specifications
Mounting method
Other
Colour
White
Width
95mm
Surface protection
Untreated
Depth
99mm
Creep-under protection
Model
Presence detector
Number of channels
1
Height
83mm
Built-in depth
83mm
Switching power
-W
Built-in diameter
68mm
Built-in width
95mm
Staircase monitoring
Material quality
Thermoplastic
Bus system KNX
Other bus systems
None
Material
Other
RAL-number (similar)
9010
Max. transmission range frontally
7m
Substation input
Bus system Powernet
With bus connection
Bus system radio frequent
Bus system LON
Built-in length
99mm
Teach-function for response value luminosity
Operation mode switch
Diameter detection range on floor
7m
Diameter
68mm
Max. transmission range sideways
8m
With connection cable
Transparent
Animal zone
Surface finishing
Matt
Detection angle vertical
55 .. 55°
Min. switch-on time
5s
Bus system KNX radio
Min. depth of built-in installation box
30mm
Max. duty cycle
480min
With acoustic sensor
Suitable for ceiling mounting
Switch-off delay self-learning
Radio frequent bidirectional
Detection angle horizontal
360 .. 360°
DALI-2 certified
Optimum mounting height
4m
Response value luminosity adjustable
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
