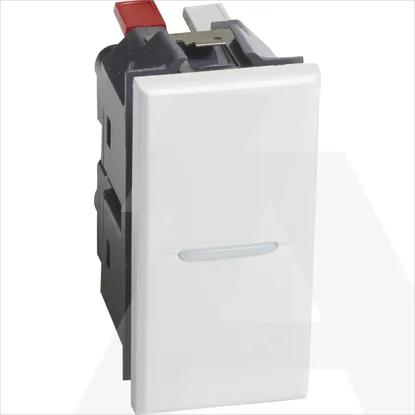

HD4003AN | AXO-SKLOP IZMJ 1P 10A 1MWH
Code: 1764304
Details
- •Domestic switching devices
- •Switch
- •10 KOM
- •LEGRAND
Technical specifications
Mounting methodModule frame
Type of fasteningEngage (snap)
Material qualityThermoplastic
Surface finishingGlossy
ColourWhite
Surface protectionUntreated
Halogen freeYes
RAL-number (similar)9003
MaterialPlastic
Suitable for degree of protection (IP)IP20
Built-in depth33mm
Rated current10A
Depth of device35.5mm
Number of modules (module system)1
Nominal voltage250V
Width of device22.5mm
Height of device45mm
Connection typeOther
With mounting plateNo
Assembly arrangementModular device for domestic switching devices
Method of operationOther
Number of rockers1
Feedback-signal contactNo
Min. depth of built-in installation box30mm
Wiring systemTwo-way switch
Washing machine switchNo
Push button switchNo
IlluminationOptional
Label space/information surfaceNo
Switching current for fluorescent lamps10AX
Type of lightingLED exchangeable
Function lightingIlluminated (on)
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
