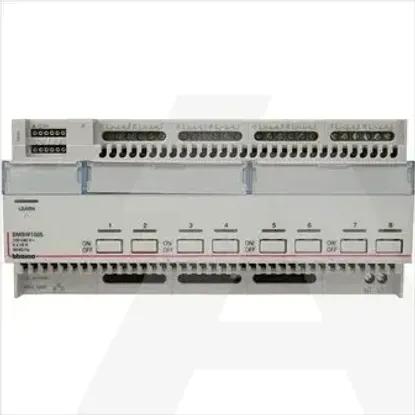

BMSW1005 | Aktuator 8X16A 10DIN
Code: 1765519
ManufacturerLegrand
Catalog numberBMSW1005
TypeBticino BMSW1005
CategorySwitch actuator for bus system
EAN code8005543485484
Details
- •Installation bus systems
- •Switch actuator for bus system
- •1 KOM
- •LEGRAND
Technical specifications
Bus system PowernetNo
Bus system radio frequentNo
Output power-W
Max. switching power3500W
Bus system LONNo
Other bus systemsNone
Max. number of switching contacts8
Max. switching current-A
Number of digital inputs1
Suitable for C-loadNo
With bus connectionNo
Different phases connectableNo
Bus module detachableNo
With LED indicationYes
Local operation/hand operationYes
Bus system KNX radioNo
Min. depth of built-in installation box-mm
Radio frequent bidirectionalNo
Modular expandabilityNo
Mounting methodOther
Rated current-A
Rated operating voltage100 - 240V
Bus system KNXNo
Width in number of modular spacings10
Degree of protection (IP)IP20
