Details
- •Installation bus systems
- •Switch actuator for bus system
- •1 KOM
- •LEGRAND
Technical specifications
Max. switching power3500W
Bus system PowernetNo
Bus system KNXNo
Rated operating voltage- - -V
With bus connectionYes
Bus system radio frequentNo
Max. number of switching contacts2
Mounting methodDRA (DIN-rail adapter)
Output power-W
Rated current16A
Width in number of modular spacings2
Max. switching current-A
Number of digital inputs0
Bus system LONNo
Other bus systemsOther
Suitable for C-loadYes
Bus module detachableNo
Different phases connectableNo
Degree of protection (IP)IP20
Radio frequent bidirectionalNo
With LED indicationYes
Bus system KNX radioNo
Modular expandabilityNo
Min. depth of built-in installation box-mm
Local operation/hand operationYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

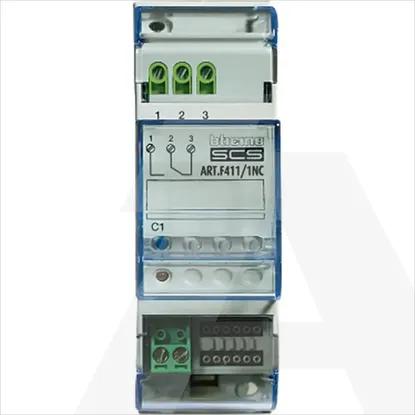

F411/1NC | AKTUATOR 1 NC RELEJ DIN 2M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Installation bus systems
- Switch actuator for bus system
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Max. switching power
3500W
Bus system Powernet
Bus system KNX
Rated operating voltage
- .. -V
With bus connection
Bus system radio frequent
Max. number of switching contacts
2
Mounting method
DRA (DIN-rail adapter)
Output power
-W
Rated current
16A
Width in number of modular spacings
2
Max. switching current
-A
Number of digital inputs
0
Bus system LON
Other bus systems
Other
Suitable for C-load
Bus module detachable
Different phases connectable
Degree of protection (IP)
IP20
Radio frequent bidirectional
With LED indication
Bus system KNX radio
Modular expandability
Min. depth of built-in installation box
-mm
Local operation/hand operation
