Details
- •Installation bus systems
- •Switch actuator for bus system
- •1 KOM
- •LEGRAND
Technical specifications
Bus system KNXNo
Output power-W
Max. number of switching contacts3
Rated current4A
Number of digital inputs0
Width in number of modular spacings4
With bus connectionYes
Rated operating voltage240 - 240V
Bus system radio frequentNo
Bus system PowernetNo
Max. switching current-A
Other bus systemsOther
Mounting methodDRA (DIN-rail adapter)
Max. switching power-W
Local operation/hand operationYes
Different phases connectableNo
Bus system LONNo
Suitable for C-loadNo
Modular expandabilityNo
Degree of protection (IP)IP20
Bus module detachableNo
Bus system KNX radioNo
Radio frequent bidirectionalNo
With LED indicationYes
Min. depth of built-in installation box-mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

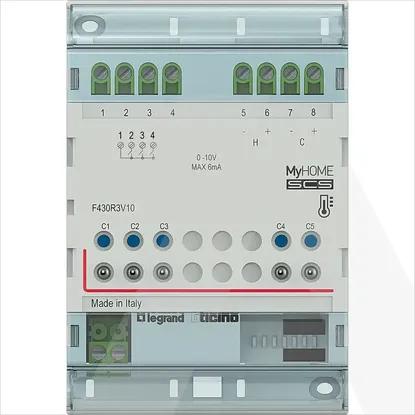

F430R3V10 | AKTUATOR 3 RELEJA +2X 0-10V 4M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Installation bus systems
- Switch actuator for bus system
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Bus system KNX
Output power
-W
Max. number of switching contacts
3
Rated current
4A
Number of digital inputs
0
Width in number of modular spacings
4
With bus connection
Rated operating voltage
240 .. 240V
Bus system radio frequent
Bus system Powernet
Max. switching current
-A
Other bus systems
Other
Mounting method
DRA (DIN-rail adapter)
Max. switching power
-W
Local operation/hand operation
Different phases connectable
Bus system LON
Suitable for C-load
Modular expandability
Degree of protection (IP)
IP20
Bus module detachable
Bus system KNX radio
Radio frequent bidirectional
With LED indication
Min. depth of built-in installation box
-mm
