Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44.5mm
Rated voltage230V
Current limiting class1
Frequency50 - 60Hz
Rated insulation voltage Ui-V
Rated current16A
Over voltage category-
Pollution degree-
Release characteristicC
Width in number of modular spacings22.3
Degree of protection (IP)IP20
Number of protected poles1
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core2.5 - 2.5mm²
Connectable conductor cross section multi-wired- - -mm²
Number of poles (total)1
Ambient temperature during operating-5 - 50°C
Rated impulse withstand voltage Uimp-kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

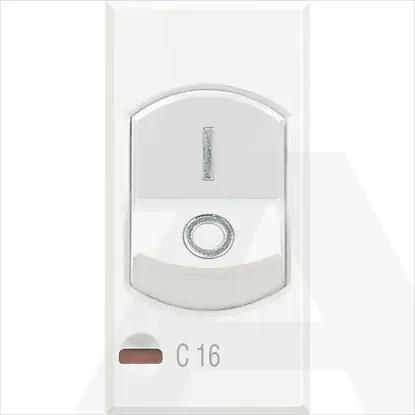

HD4301A16 | MCB 1P+N 16A 3000A 1M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Built-in depth
44.5mm
Rated voltage
230V
Current limiting class
1
Frequency
50 .. 60Hz
Rated insulation voltage Ui
-V
Rated current
16A
Over voltage category
-
Pollution degree
-
Release characteristic
C
Width in number of modular spacings
22.3
Degree of protection (IP)
IP20
Number of protected poles
1
Concurrently switching neutral conductor
Connectable conductor cross section solid-core
2.5 .. 2.5mm²
Connectable conductor cross section multi-wired
- .. -mm²
Number of poles (total)
1
Ambient temperature during operating
-5 .. 50°C
Rated impulse withstand voltage Uimp
-kV
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
