Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Concurrently switching neutral conductorYes
Current limiting class1
Rated fault current-A
Leakage current typeOther
Pollution degree-
Number of protected poles1
Frequency50/60 Hz
Over voltage category-
Width in number of modular spacings45.1
Rated short-circuit breaking capacity according to IEC 60947-23kA
Connectable conductor cross section solid-core2.5 - 2.5mm²
Rated current16A
Rated insulation voltage Ui-V
Release characteristicC
Connectable conductor cross section multi-wired- - -mm²
Built-in depth44.5mm
Surge current capacity-kA
Rated voltage230V
Degree of protection (IP)IP20
Number of poles (total)1
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionNo
With interlocking deviceNo
Ambient temperature during operating-5 - 50°C
Rated short-circuit breaking capacity Icn according to EN 61009-13kA
Rated short-circuit breaking capacity according to EN 610093kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

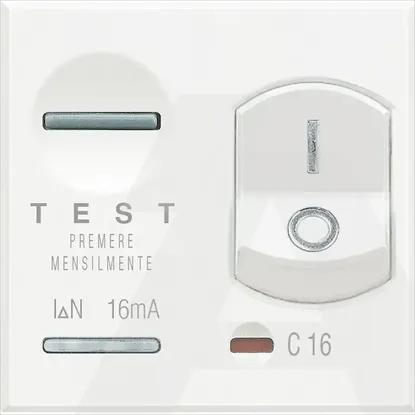

HD4305A16 | RCD+MCB 1P+N 16A 10MA 3000A 2M
