Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44.5mm
Rated current10A
Rated insulation voltage Ui-V
Rated fault current0.01A
Leakage current typeOther
Release characteristicC
Rated voltage230V
Current limiting class1
Width in number of modular spacings45.1
Pollution degree-
Surge current capacity-kA
Over voltage category-
Number of protected poles1
Frequency50/60 Hz
Rated short-circuit breaking capacity according to IEC 60947-23kA
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 61009-13kA
Ambient temperature during operating-5 - 50°C
Number of poles (total)1
With interlocking deviceNo
Connectable conductor cross section solid-core2.5 - 2.5mm²
Anti-nuisance tripping versionNo
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to EN 610093kA
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired- - -mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

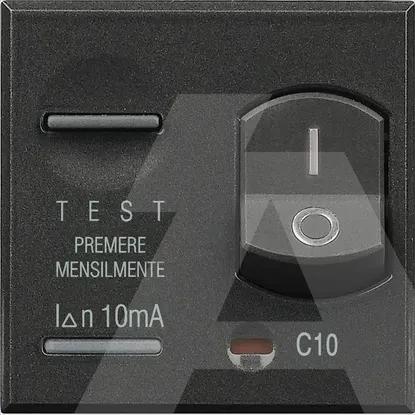

HS4305/10 | RCD+MCB 1P+N 10A 10MA 3000A-2M
