Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •LEGRAND
Technical specifications
Protection classII
Mounting methodSurface mounting/recessed mounting
Nominal voltage230 - 230V
Number of lighting heads-
Outer diameter-mm
Power supply systemCentral (central battery)
Lamp typeOther
Conductor cross section-mm²
Built-in length-mm
Lamp holderOther
Suitable for labelling typeSticker
Colour housingAnthracite
Width45mm
Built-in diameter-mm
Number of poles-
Type of indicatorSingle-sided
Height/depth59mm
Length136.5mm
Material coverOther
Material housingPlastic
Built-in width-mm
Luminaire with limited surface temperature, sign "D“No
Colour temperature- - -K
Monitoring equipmentTest button
Rated luminous flux according to IEC 62722-2-15lm
With remote switch connectionNo
Recognition distance2m
Max. system power1.3W
Suitable for number of lamps-
With light sourceYes
Rated ambient temperature according to IEC62722-2-1- - -°C
Luminous flux in standby mode-lm
Suitable for continuous circuitYes
With pictogramNo
Nominal operation time1 - 1h
Power factor-
Built-in height/depth59mm
Rated life time L70/B50 at 25 °C-h
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

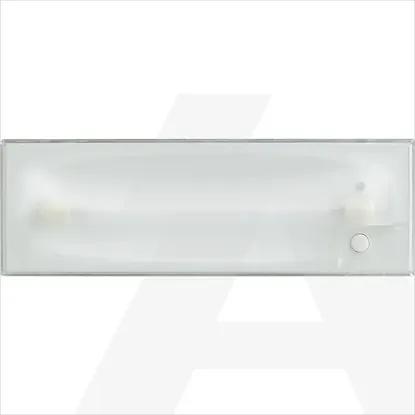

H4386X1 | AXO PANIK LAMPA 1H-6M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Protection class
II
Mounting method
Surface mounting/recessed mounting
Nominal voltage
230 .. 230V
Number of lighting heads
-
Outer diameter
-mm
Power supply system
Central (central battery)
Lamp type
Other
Conductor cross section
-mm²
Built-in length
-mm
Lamp holder
Other
Suitable for labelling type
Sticker
Colour housing
Anthracite
Width
45mm
Built-in diameter
-mm
Number of poles
-
Type of indicator
Single-sided
Height/depth
59mm
Length
136.5mm
Material cover
Other
Material housing
Plastic
Built-in width
-mm
Luminaire with limited surface temperature, sign "D“
Colour temperature
- .. -K
Monitoring equipment
Test button
Rated luminous flux according to IEC 62722-2-1
5lm
With remote switch connection
Recognition distance
2m
Max. system power
1.3W
Suitable for number of lamps
-
With light source
Rated ambient temperature according to IEC62722-2-1
- .. -°C
Luminous flux in standby mode
-lm
Suitable for continuous circuit
With pictogram
Nominal operation time
1 .. 1h
Power factor
-
Built-in height/depth
59mm
Rated life time L70/B50 at 25 °C
-h
Degree of protection (IP)
IP20
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
