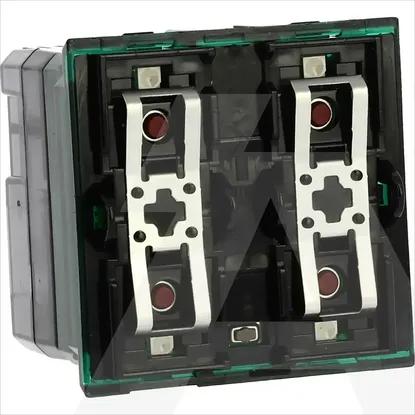

H4672M2 | Relej AKT Dual Trosila P/Z 2M
Code: 1766971
ManufacturerLegrand
Catalog numberH4672M2
TypeBticino H4672M2
CategorySwitch actuator for bus system
EAN code8005543560860
Details
- •Installation bus systems
- •Switch actuator for bus system
- •1 KOM
- •LEGRAND
Technical specifications
Output power-W
Bus system radio frequentNo
Max. switching current-A
Max. number of switching contacts2
Bus system KNX radioNo
Bus system PowernetNo
With bus connectionYes
Local operation/hand operationYes
With LED indicationYes
Max. switching power1380W
Suitable for C-loadNo
Other bus systemsOther
Different phases connectableYes
Modular expandabilityYes
Bus system LONNo
Radio frequent bidirectionalNo
Min. depth of built-in installation box-mm
Bus module detachableYes
Mounting methodFlush mounted (plaster)
Rated current6A
Rated operating voltage110 - 230V
Bus system KNXNo
Width in number of modular spacings2
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
H4672M2 | Relej AKT Dual Trosila P/Z 2M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Installation bus systems
- Switch actuator for bus system
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Output power
-W
Bus system radio frequent
Max. switching current
-A
Max. number of switching contacts
2
Bus system KNX radio
Bus system Powernet
With bus connection
Local operation/hand operation
With LED indication
Max. switching power
1380W
Suitable for C-load
Other bus systems
Other
Different phases connectable
Modular expandability
Bus system LON
Radio frequent bidirectional
Min. depth of built-in installation box
-mm
Bus module detachable
Mounting method
Flush mounted (plaster)
Rated current
6A
Rated operating voltage
110 .. 230V
Bus system KNX
Width in number of modular spacings
2
Degree of protection (IP)
IP20
