Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated fault current-A
Current limiting class1
Leakage current typeOther
Release characteristicC
Rated insulation voltage Ui-V
Rated current16A
Rated voltage230V
Built-in depth33.5mm
Surge current capacity-kA
Over voltage category-
Pollution degree-
Number of protected poles1
Anti-nuisance tripping versionNo
Ambient temperature during operating-5 - 50°C
Rated short-circuit breaking capacity Icn according to EN 61009-13kA
With interlocking deviceNo
Connectable conductor cross section solid-core2.5 - 2.5mm²
Rated short-circuit breaking capacity according to IEC 60947-23kA
Degree of protection (IP)IP20
Frequency50/60 Hz
Width in number of modular spacings43.8
Rated short-circuit breaking capacity according to EN 610093kA
Rated impulse withstand voltage Uimp-kV
Concurrently switching neutral conductorYes
Number of poles (total)1
Connectable conductor cross section multi-wired- - -mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

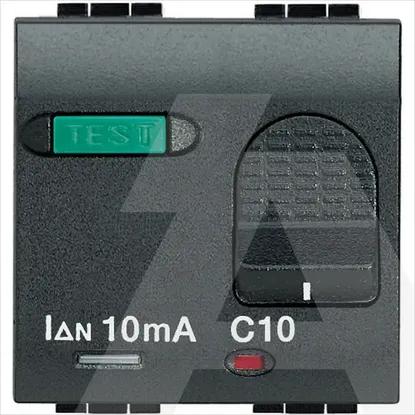

L4305/16 | RCD+MCB 1P+N 16A 10MA 3000A-2M
