Details
- •Cables
- •Power cable < 1 kV, for permanent installation
- •1 KOM
- •LEGRAND
Technical specifications
Material core insulationPolyvinyl chloride (PVC)
Nominal cross section conductor0.35mm²
Material outer sheathPolyvinyl chloride (PVC)
Conductor materialCopper
Diameter conductor1.95mm
Core identificationColour
Drain wireNo
Conductor categoryClass 2 = stranded
Armouring/reinforcementNone
Colour outer sheathGrey
Permitted cable outer temperature during assembling/handling-15 - 70°C
Nominal voltage U500V
Number of cores12
Outer diameter approx.5.6mm
Nominal voltage U0300V
ScreenNo
Low smoke (according to IEC 61034-2)No
Permitted cable outer temperature after assembling without vibration-15 - 70°C
Max. conductor temperature70°C
Protective barrierNone
With rodent protectionNo
Oil resistant (according to EN 60811-404)No
Low temperature resistant (according to EN 60811-504+505+506)No
Radial water blocking cableNo
With protective conductorNo
Reaction-to-fire class according to EN 13501-6Eca
Twisted coresNo
Nominal cross section conductor (AWG)-kcmil
Min. permitted bending radius, stationary application/permanent installation-mm
Cable geometryRound
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

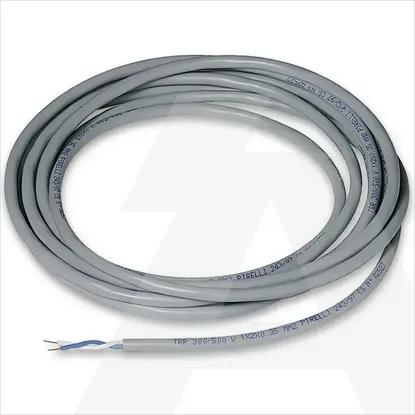

L4669 | BUS KABEL 300/500V SIVI 100M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Cables
- Power cable < 1 kV, for permanent installation
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Material core insulation
Polyvinyl chloride (PVC)
Nominal cross section conductor
0.35mm²
Material outer sheath
Polyvinyl chloride (PVC)
Conductor material
Copper
Diameter conductor
1.95mm
Core identification
Colour
Drain wire
Conductor category
Class 2 = stranded
Armouring/reinforcement
None
Colour outer sheath
Grey
Permitted cable outer temperature during assembling/handling
-15 .. 70°C
Nominal voltage U
500V
Number of cores
12
Outer diameter approx.
5.6mm
Nominal voltage U0
300V
Screen
Low smoke (according to IEC 61034-2)
Permitted cable outer temperature after assembling without vibration
-15 .. 70°C
Max. conductor temperature
70°C
Protective barrier
None
With rodent protection
Oil resistant (according to EN 60811-404)
Low temperature resistant (according to EN 60811-504+505+506)
Radial water blocking cable
With protective conductor
Reaction-to-fire class according to EN 13501-6
Eca
Twisted cores
Nominal cross section conductor (AWG)
-kcmil
Min. permitted bending radius, stationary application/permanent installation
-mm
Cable geometry
Round
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
