Details
- •Cables
- •Power cable < 1 kV, for permanent installation
- •1 KOM
- •LEGRAND
Technical specifications
Conductor categoryClass 2 = stranded
Core identificationColour
Material outer sheathPolyvinyl chloride (PVC)
Material core insulationPolyvinyl chloride (PVC)
Nominal voltage U500V
Armouring/reinforcementNone
Conductor materialCopper
Diameter conductor1.95mm
Colour outer sheathGrey
Permitted cable outer temperature during assembling/handling-15 - 70°C
Nominal cross section conductor0.35mm²
Drain wireNo
Protective barrierNone
Max. conductor temperature70°C
Permitted cable outer temperature after assembling without vibration-15 - 70°C
Low smoke (according to IEC 61034-2)No
Number of cores2
ScreenNo
Nominal voltage U0300V
With protective conductorNo
Outer diameter approx.5.5mm
Low temperature resistant (according to EN 60811-504+505+506)No
Twisted coresNo
Oil resistant (according to EN 60811-404)No
Min. permitted bending radius, stationary application/permanent installation-mm
Nominal cross section conductor (AWG)-kcmil
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

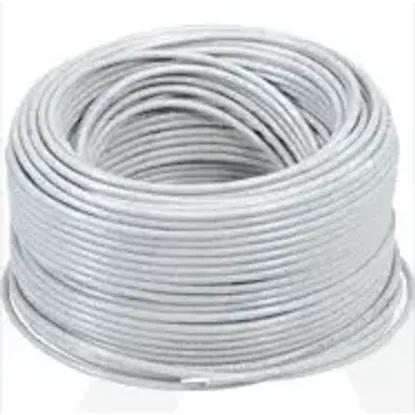

L4669/500 | BUS KABEL 300/500V SIVI 500M
