Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated current10A
Rated voltage230V
Release characteristicC
Leakage current typeOther
Surge current capacity-kA
Current limiting class1
Built-in depth33.5mm
Over voltage category-
Rated insulation voltage Ui-V
Rated fault current0.01A
Pollution degree-
Connectable conductor cross section solid-core2.5 - 2.5mm²
Width in number of modular spacings43.8
Degree of protection (IP)IP20
Number of protected poles1
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity according to IEC 60947-23kA
Frequency50/60 Hz
Rated short-circuit breaking capacity Icn according to EN 61009-13kA
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to EN 610093kA
Number of poles (total)1
With interlocking deviceNo
Connectable conductor cross section multi-wired- - -mm²
Ambient temperature during operating-5 - 50°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

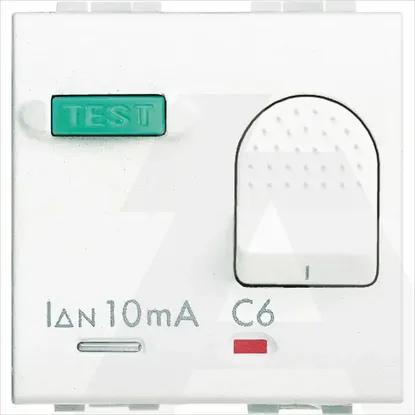

N4305/10 | RCD+MCB 1P+N 10A 10MA 3000A-2M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated current
10A
Rated voltage
230V
Release characteristic
C
Leakage current type
Other
Surge current capacity
-kA
Current limiting class
1
Built-in depth
33.5mm
Over voltage category
-
Rated insulation voltage Ui
-V
Rated fault current
0.01A
Pollution degree
-
Connectable conductor cross section solid-core
2.5 .. 2.5mm²
Width in number of modular spacings
43.8
Degree of protection (IP)
IP20
Number of protected poles
1
Concurrently switching neutral conductor
Rated short-circuit breaking capacity according to IEC 60947-2
3kA
Frequency
50/60 Hz
Rated short-circuit breaking capacity Icn according to EN 61009-1
3kA
Rated impulse withstand voltage Uimp
-kV
Anti-nuisance tripping version
Rated short-circuit breaking capacity according to EN 61009
3kA
Number of poles (total)
1
With interlocking device
Connectable conductor cross section multi-wired
- .. -mm²
Ambient temperature during operating
-5 .. 50°C
