Details

  • •Earthing, lightning and surge protection
  • •Surge protection device for terminal equipment
  • •1 KOM
  • •LEGRAND

Technical specifications

Max. continuous voltage AC250V
With remote signalling contactNo
Mounting methodModule
Number of poles1
Total discharge current (8/20) (L+N-PE)2kA
Voltage protection level1kV
Nominal load current16A
Nominal discharge surge current (8/20) (L-N)1kA
Nominal voltage DC-V
Voltage protection level L-PE/N-PE-kV
Category type 3No
Degree of protection (IP)IP20
Voltage protection level L-N-kV
Max. conductor cross section solid (solid, stranded)2.5mm²
With interference suppressor filterNo
Total discharge current (8/20) (L1+L2+L3+N-PE)-kA
Max. continuous voltage DC-V
Nominal voltage AC230V
Max. conductor cross section flexible (fine-strand)2.5mm²
Signalling at the deviceOptic
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

N4536 | ODVODNIK PRENAPONA 230V-1M

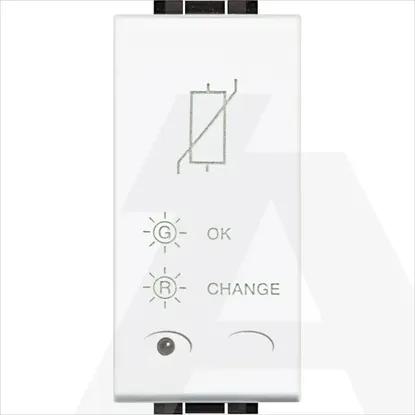

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Earthing, lightning and surge protection
  • Surge protection device for terminal equipment
  • 1 KOM
  • LEGRAND

Technical specifications

Max. continuous voltage AC

250V

With remote signalling contact

Mounting method

Module

Number of poles

1

Total discharge current (8/20) (L+N-PE)

2kA

Voltage protection level

1kV

Nominal load current

16A

Nominal discharge surge current (8/20) (L-N)

1kA

Nominal voltage DC

-V

Voltage protection level L-PE/N-PE

-kV

Category type 3

Degree of protection (IP)

IP20

Voltage protection level L-N

-kV

Max. conductor cross section solid (solid, stranded)

2.5mm²

With interference suppressor filter

Total discharge current (8/20) (L1+L2+L3+N-PE)

-kA

Max. continuous voltage DC

-V

Nominal voltage AC

230V

Max. conductor cross section flexible (fine-strand)

2.5mm²

Signalling at the device

Optic
