Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
With remote signalling contactNo
Voltage protection level1.2kV
Max. continuous voltage AC275V
Max. conductor cross section flexible (fine-strand)16mm²
Integrated backup fuseYes
Degree of protection (IP)IP20
Max. PV-voltage-V
Category type 2Yes
Voltage protection level N-PE-kV
Number of conductors (without earthing)2
Construction size2 modular spacing
Max. conductor cross section solid (solid, stranded)16mm²
Nominal voltage AC230V
Nominal voltage DC-V
Nominal discharge surge current (8/20)10kA
System configuration ITNo
System configuration DCNo
System configuration TNNo
System configuration otherNo
System configuration TN-CNo
System configuration TN-SNo
Max. continuous voltage DC-V
Signalling at the deviceOptic
System configuration TTYes
Voltage protection level L-N1kV
System configuration TN-C-SNo
Max. discharge surge current (8/20)-kA
Short-circuit breaking capacity (Isccr)-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

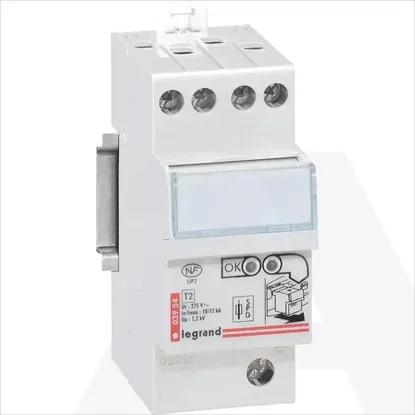

003951 | ODV PREN KL2 12KA 2P +AO
