Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Nominal discharge surge current (8/20)10kA
Max. continuous voltage AC275V
Construction size1 modular spacing
With remote signalling contactNo
Voltage protection level1.2kV
Number of conductors (without earthing)-
Nominal voltage DC-V
Nominal voltage AC230V
Max. PV-voltage-V
Degree of protection (IP)IP20
Category type 2Yes
Voltage protection level N-PE-kV
Voltage protection level L-N-kV
Max. continuous voltage DC-V
Signalling at the deviceOptic
System configuration ITNo
System configuration TNNo
Max. conductor cross section flexible (fine-strand)-mm²
System configuration otherYes
System configuration TN-C-SNo
System configuration TN-CNo
Max. conductor cross section solid (solid, stranded)-mm²
System configuration TTNo
Integrated backup fuseNo
Short-circuit breaking capacity (Isccr)-kA
System configuration TN-SNo
System configuration DCNo
Max. discharge surge current (8/20)-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

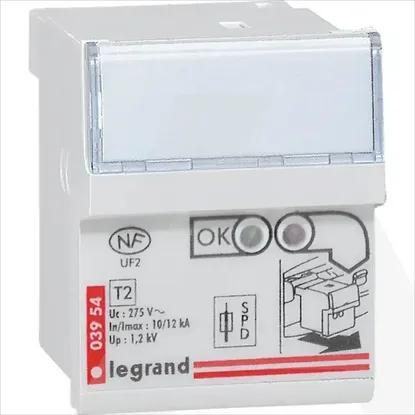

003954 | ODV PREN KL2 12KA MODUL +AO
