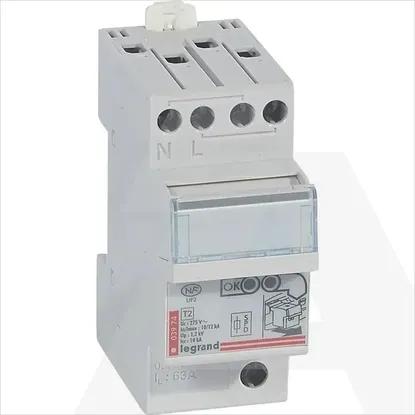

003971 | ODV PREN KL2 12KA 2P +AO
Code: 1768958
Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Degree of protection (IP)IP20
Mounting methodDIN rail (top hat rail) 35 mm
Construction size2 modular spacing
Number of conductors (without earthing)2
Max. continuous voltage AC275V
Signalling at the deviceOptic
Max. continuous voltage DC-V
Voltage protection level1.2kV
Nominal voltage AC230V
Voltage protection level L-N1kV
Max. conductor cross section solid (solid, stranded)16mm²
Max. conductor cross section flexible (fine-strand)16mm²
Integrated backup fuseYes
Nominal voltage DC-V
With remote signalling contactNo
Nominal discharge surge current (8/20)10kA
Voltage protection level N-PE-kV
System configuration TNNo
System configuration DCNo
System configuration TN-SNo
System configuration ITNo
System configuration otherNo
System configuration TTYes
System configuration TN-CNo
System configuration TN-C-SNo
Max. PV-voltage-V
Category type 2Yes
Max. discharge surge current (8/20)-kA
Short-circuit breaking capacity (Isccr)-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
