Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
With remote signalling contactNo
Nominal voltage DC-V
Voltage protection level L-N1kV
Voltage protection level1.2kV
Max. continuous voltage AC275V
Category type 2Yes
Nominal discharge surge current (8/20)10kA
Degree of protection (IP)IP20
Max. continuous voltage DC-V
Max. PV-voltage-V
Voltage protection level N-PE-kV
Max. conductor cross section solid (solid, stranded)-mm²
Max. conductor cross section flexible (fine-strand)-mm²
Number of conductors (without earthing)-
System configuration DCNo
Integrated backup fuseNo
Nominal voltage AC400V
Signalling at the deviceOptic
Construction size1 modular spacing
System configuration TN-CNo
System configuration TTNo
System configuration ITNo
Short-circuit breaking capacity (Isccr)-kA
System configuration TN-SNo
System configuration TN-C-SNo
Max. discharge surge current (8/20)-kA
System configuration TNNo
System configuration otherYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

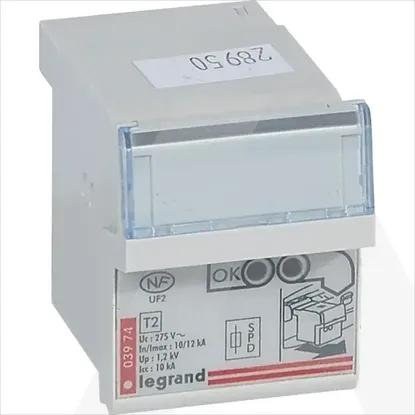

003974 | ODV PREN KL2 12KA MODUL +AO
