Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V15kW
Rated permanent current Iu50A
Number of switches-
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
InterlockableYes
Number of auxiliary contacts as normally closed contact0
Number of poles3
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP65
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq10kA
Motor drive integratedNo
Colour control elementRed
Rated short-time withstand current lcw1.8kA
Version as reversing switchNo
Rated permanent current at AC-21, 400 V50A
Version as main switchYes
Switching power at 400 V20kW
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Suitable for front mounting 4-holeYes
Motor drive optionalNo
Version as maintenance-/service switchYes
Version as safety switchYes
Suitable for floor mountingNo
Rated permanent current at AC-23, 400 V-A
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-23, 400 V18.5kW
Suitable for front mounting centreNo
Type of control elementShort thumb-grip
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

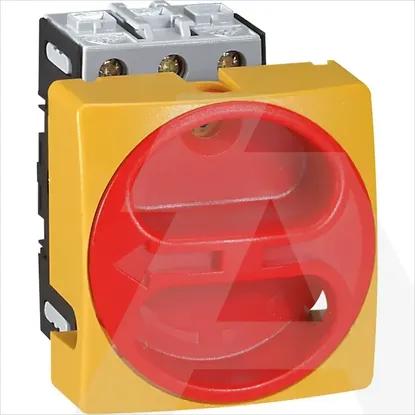

022104 | RASTAVNA SKLOPKA 3P 50A
