Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Number of switches-
Conditioned rated short-circuit current Iq10kA
Degree of protection (IP), front sideIP65
Rated operation power at AC-3, 400 V18.5kW
Rated permanent current Iu63A
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Number of poles3
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
InterlockableYes
Version as main switchYes
Type of control elementShort thumb-grip
Rated operation power at AC-23, 400 V22kW
Rated short-time withstand current lcw1.8kA
Suitable for front mounting 4-holeYes
Suitable for floor mountingNo
Colour control elementRed
Version as safety switchYes
Suitable for intermediate mountingNo
Motor drive optionalNo
Voltage release optionalNo
Version as reversing switchNo
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
Switching power at 400 V25.2kW
Rated permanent current at AC-21, 400 V63A
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Version as maintenance-/service switchYes
Rated permanent current at AC-23, 400 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

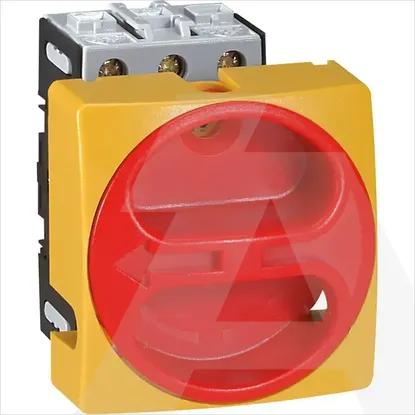

022105 | RASTAVNA SKLOPKA 3P 63A
