Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu80A
Rated operation power at AC-23, 400 V30kW
InterlockableYes
Degree of protection (IP), front sideIP65
Number of poles3
Motor drive integratedNo
Rated operation power at AC-3, 400 V22kW
Number of auxiliary contacts as normally closed contact0
Version as main switchYes
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq10kA
Type of electrical connection of main circuitScrew connection
Rated operating voltage690 - 690V
Type of control elementShort thumb-grip
Number of switches-
Version as safety switchYes
Suitable for front mounting 4-holeYes
Rated short-time withstand current lcw2.8kA
Colour control elementRed
Suitable for distribution board installationNo
Version as reversing switchNo
Motor drive optionalNo
Suitable for intermediate mountingNo
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V32kW
Rated permanent current at AC-23, 400 V-A
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V80A
Suitable for front mounting centreNo
Suitable for floor mountingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

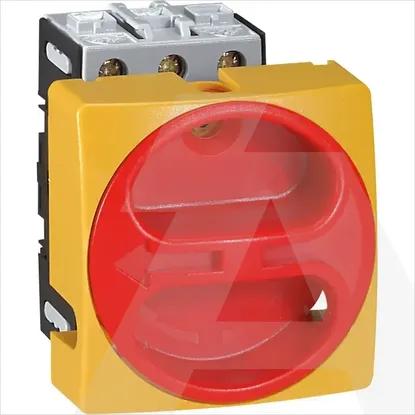

022106 | RASTAVNA SKLOPKA 3P 80A
