Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Version as emergency stop installationNo
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as change-over contact0
Number of poles3
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Conditioned rated short-circuit current Iq10kA
Rated permanent current Iu100A
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP65
InterlockableYes
Number of switches-
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Version as safety switchYes
Type of control elementShort thumb-grip
Rated operation power at AC-23, 400 V37kW
Motor drive optionalNo
Version as maintenance-/service switchYes
Suitable for intermediate mountingNo
Version as main switchYes
Suitable for floor mountingNo
Rated permanent current at AC-21, 400 V100A
Suitable for front mounting 4-holeYes
Switching power at 400 V40kW
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Version as reversing switchNo
Rated short-time withstand current lcw2.8kA
Rated permanent current at AC-23, 400 V-A
Colour control elementRed
Max. rated operation voltage Ue AC690V
Suitable for distribution board installationNo
Suitable for front mounting centreNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

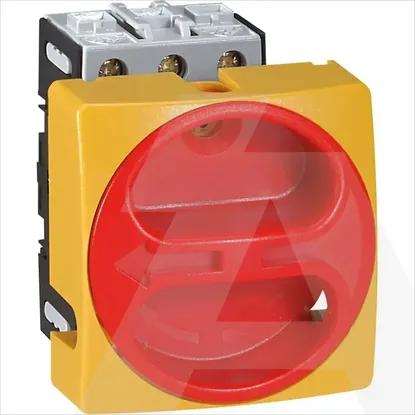

022107 | RASTAVNA SKLOPKA 3P 100A
