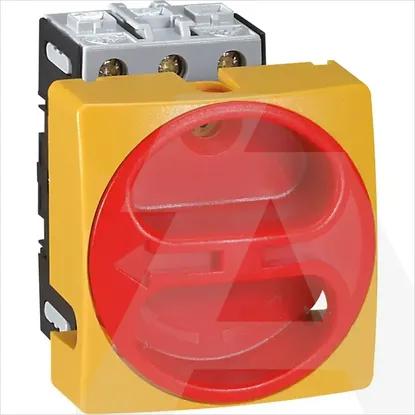

022108 | Rast Sklopka PZ 3P 20A
Code: 1770327
ManufacturerLegrand
Catalog number022108
TypeLegrand 022108
CategorySwitch disconnector
EAN code3245060221089
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V4kW
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq6kA
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V7.5kW
Suitable for distribution board installationNo
Motor drive integratedNo
Colour control elementRed
Rated short-time withstand current lcw1kA
Version as main switchYes
Suitable for front mounting 4-holeYes
Version as maintenance-/service switchYes
Type of electrical connection of main circuitScrew connection
Suitable for intermediate mountingNo
Version as emergency stop installationNo
Type of control elementShort thumb-grip
Rated permanent current at AC-21, 400 V20A
Motor drive optionalNo
Voltage release optionalNo
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V8kW
Number of switches-
InterlockableYes
Suitable for front mounting centreNo
Version as safety switchYes
Rated permanent current at AC-23, 400 V-A
Rated permanent current Iu20A
Number of poles3
Max. rated operation voltage Ue AC400V
