Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated operation power at AC-3, 400 V15kW
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq10kA
Type of control elementShort thumb-grip
Motor drive integratedNo
Rated permanent current Iu50A
Rated short-time withstand current lcw1.8kA
Degree of protection (IP), front sideIP65
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V18.5kW
Number of auxiliary contacts as change-over contact0
InterlockableYes
Version as maintenance-/service switchYes
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Number of switches-
Number of auxiliary contacts as normally open contact0
Version as safety switchYes
Number of poles4
Colour control elementRed
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Suitable for distribution board installationNo
Number of auxiliary contacts as normally closed contact0
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Switching power at 400 V20kW
Rated permanent current at AC-23, 400 V-A
Rated permanent current at AC-21, 400 V50A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

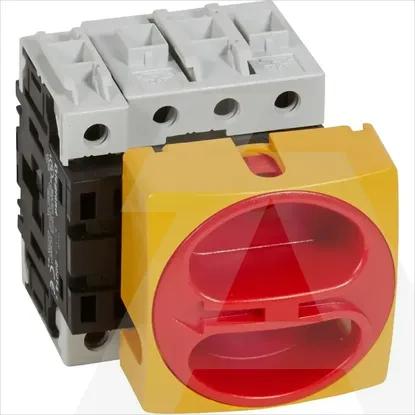

022114 | RASTAVNA SKLOPKA 4P 50A
