Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated operation power at AC-3, 400 V18.5kW
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Rated short-time withstand current lcw1.8kA
Type of electrical connection of main circuitScrew connection
Version as safety switchYes
Version as maintenance-/service switchYes
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Degree of protection (IP), front sideIP65
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V22kW
Suitable for floor mountingNo
Number of auxiliary contacts as change-over contact0
Suitable for front mounting 4-holeYes
Rated permanent current Iu63A
Colour control elementRed
Rated operating voltage690 - 690V
Version as main switchYes
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq10kA
InterlockableYes
Number of poles4
Number of switches-
Rated permanent current at AC-23, 400 V-A
Voltage release optionalNo
Rated permanent current at AC-21, 400 V63A
Max. rated operation voltage Ue AC690V
Switching power at 400 V25.2kW
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

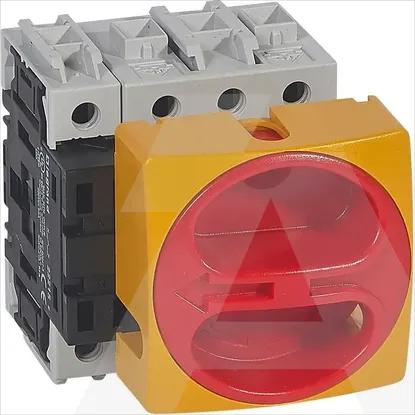

022115 | RASTAVNA SKLOPKA 4P 63A
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated operation power at AC-3, 400 V
18.5kW
Number of auxiliary contacts as normally open contact
0
Motor drive integrated
Rated short-time withstand current lcw
1.8kA
Type of electrical connection of main circuit
Screw connection
Version as safety switch
Version as maintenance-/service switch
Type of control element
Short thumb-grip
Version as emergency stop installation
Degree of protection (IP), front side
IP65
Suitable for distribution board installation
Suitable for front mounting centre
Suitable for intermediate mounting
Rated operation power at AC-23, 400 V
22kW
Suitable for floor mounting
Number of auxiliary contacts as change-over contact
0
Suitable for front mounting 4-hole
Rated permanent current Iu
63A
Colour control element
Red
Rated operating voltage
690 .. 690V
Version as main switch
Number of auxiliary contacts as normally closed contact
0
Conditioned rated short-circuit current Iq
10kA
Interlockable
Number of poles
4
Number of switches
-
Rated permanent current at AC-23, 400 V
-A
Voltage release optional
Rated permanent current at AC-21, 400 V
63A
Max. rated operation voltage Ue AC
690V
Switching power at 400 V
25.2kW
Device construction
Built-in device fixed built-in technique
Motor drive optional
Version as reversing switch
