Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V22kW
Rated permanent current Iu80A
Conditioned rated short-circuit current Iq10kA
Rated operating voltage690 - 690V
Number of poles4
InterlockableYes
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Number of switches-
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Colour control elementRed
Rated short-time withstand current lcw2.8kA
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Type of control elementShort thumb-grip
Suitable for floor mountingNo
Version as safety switchYes
Rated operation power at AC-23, 400 V30kW
Version as main switchYes
Suitable for front mounting 4-holeYes
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V80A
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V32kW
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V-A
Suitable for intermediate mountingNo
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

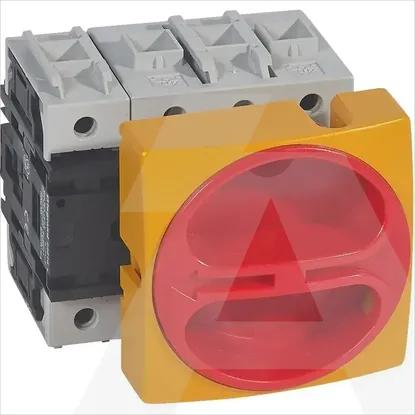

022116 | RASTAVNA SKLOPKA 4P 80A
