Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V30kW
Rated permanent current Iu100A
Motor drive optionalNo
InterlockableYes
Number of poles4
Rated short-time withstand current lcw2.8kA
Type of control elementShort thumb-grip
Version as safety switchYes
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Suitable for front mounting centreNo
Colour control elementRed
Suitable for distribution board installationNo
Number of auxiliary contacts as change-over contact0
Suitable for front mounting 4-holeYes
Rated operation power at AC-23, 400 V37kW
Suitable for intermediate mountingNo
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq10kA
Number of switches-
Version as main switchYes
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Suitable for floor mountingNo
Version as maintenance-/service switchYes
Motor drive integratedNo
Rated permanent current at AC-21, 400 V100A
Voltage release optionalNo
Rated permanent current at AC-23, 400 V-A
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V40kW
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

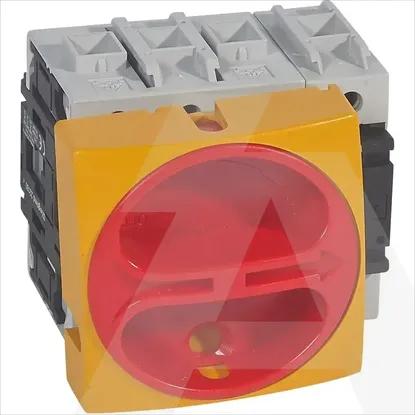

022117 | RASTAVNA SKLOPKA 4P 100A
