Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated operating voltage690 - 690V
Version as maintenance-/service switchYes
Rated operation power at AC-3, 400 V5.5kW
Conditioned rated short-circuit current Iq10kA
Number of poles4
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-23, 400 V7.5kW
Number of auxiliary contacts as change-over contact0
Type of control elementDoor coupling rotary drive
Number of auxiliary contacts as normally closed contact0
Rated short-time withstand current lcw1kA
Degree of protection (IP), front sideIP65
Number of switches-
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Rated permanent current Iu25A
Version as safety switchYes
Version as emergency stop installationNo
InterlockableYes
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Colour control elementRed
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Voltage release optionalNo
Max. rated operation voltage Ue AC400V
Motor drive optionalNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V25A
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V10kW
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

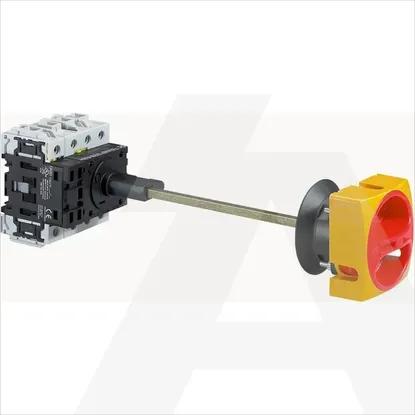

022152 | TIPKALO 4P 25A
