Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated operation power at AC-3, 400 V4kW
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq6kA
InterlockableYes
Type of control elementShort thumb-grip
Rated operating voltage690 - 690V
Rated operation power at AC-23, 400 V7.5kW
Number of poles3
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP65
Version as main switchYes
Number of switches-
Version as safety switchYes
Rated short-time withstand current lcw1kA
Colour control elementRed
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Version as maintenance-/service switchYes
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu16A
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Motor drive integratedNo
Motor drive optionalNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V16A
Device constructionComplete device in housing
Max. rated operation voltage Ue AC400V
Switching power at 400 V6.4kW
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

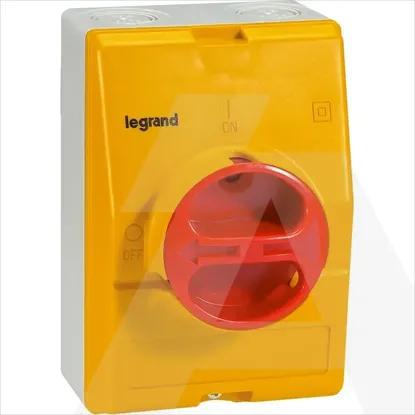

022171 | RASTAVNA SKLOPKA 3P 16A N/Z
