Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu25A
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Rated operation power at AC-3, 400 V5.5kW
Motor drive integratedNo
Number of poles3
Number of switches-
Conditioned rated short-circuit current Iq10kA
Rated operating voltage690 - 690V
InterlockableYes
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Type of control elementShort thumb-grip
Version as main switchYes
Version as safety switchYes
Type of electrical connection of main circuitScrew connection
Version as maintenance-/service switchYes
Max. rated operation voltage Ue AC400V
Device constructionComplete device in housing
Voltage release optionalNo
Colour control elementRed
Version as reversing switchNo
Rated short-time withstand current lcw1kA
Rated operation power at AC-23, 400 V7.5kW
Suitable for floor mountingYes
Rated permanent current at AC-23, 400 V-A
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V25A
Switching power at 400 V10kW
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

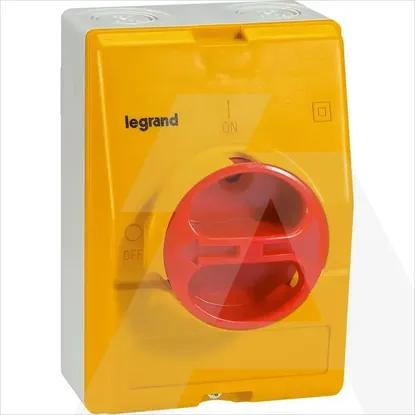

022173 | RASTAVNA SKLOPKA 3P 25A N/Z
