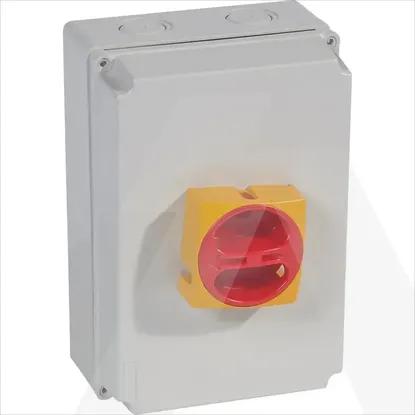

022174 | Rastavna Sklopka 3P 32A N/Z
Code: 1770339
ManufacturerLegrand
Catalog number022174
TypeLegrand 022174
CategorySwitch disconnector
EAN code3245060221744
Details
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •LEGRAND
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V15kW
InterlockableYes
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Number of switches-
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq10kA
Version as maintenance-/service switchYes
Type of electrical connection of main circuitScrew connection
Type of control elementShort thumb-grip
Motor drive integratedNo
Rated short-time withstand current lcw1kA
Version as safety switchYes
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V18.5kW
Version as main switchYes
Colour control elementRed
Version as reversing switchNo
Switching power at 400 V20kW
Voltage release optionalNo
Rated permanent current at AC-23, 400 V-A
Rated permanent current at AC-21, 400 V50A
Device constructionComplete device in housing
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Motor drive optionalNo
Rated permanent current Iu50A
Number of poles3
Max. rated operation voltage Ue AC690V
