Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Degree of protection (IP), front sideIP65
Rated operation power at AC-3, 400 V15kW
Number of auxiliary contacts as normally closed contact0
Number of poles3
Rated operating voltage690 - 690V
Rated permanent current Iu50A
InterlockableYes
Number of switches-
Conditioned rated short-circuit current Iq10kA
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Version as safety switchYes
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Version as main switchYes
Device constructionComplete device in housing
Colour control elementRed
Suitable for front mounting centreNo
Motor drive optionalNo
Rated operation power at AC-23, 400 V18.5kW
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Switching power at 400 V20kW
Rated permanent current at AC-21, 400 V50A
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Rated short-time withstand current lcw1.8kA
Version as reversing switchNo
Voltage release optionalNo
Rated permanent current at AC-23, 400 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

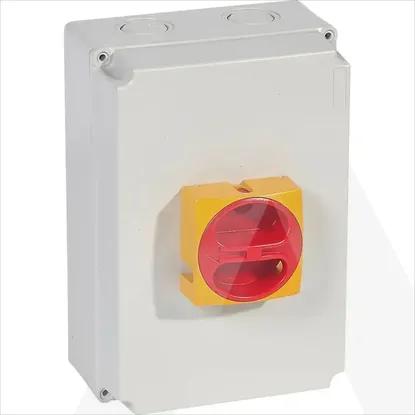

022175 | RASTAVNA SKLOPKA 3P 50A N/Z
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Degree of protection (IP), front side
IP65
Rated operation power at AC-3, 400 V
15kW
Number of auxiliary contacts as normally closed contact
0
Number of poles
3
Rated operating voltage
690 .. 690V
Rated permanent current Iu
50A
Interlockable
Number of switches
-
Conditioned rated short-circuit current Iq
10kA
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally open contact
0
Motor drive integrated
Version as safety switch
Type of control element
Short thumb-grip
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
Version as maintenance-/service switch
Version as main switch
Device construction
Complete device in housing
Colour control element
Red
Suitable for front mounting centre
Motor drive optional
Rated operation power at AC-23, 400 V
18.5kW
Suitable for distribution board installation
Suitable for front mounting 4-hole
Suitable for floor mounting
Switching power at 400 V
20kW
Rated permanent current at AC-21, 400 V
50A
Suitable for intermediate mounting
Max. rated operation voltage Ue AC
690V
Rated short-time withstand current lcw
1.8kA
Version as reversing switch
Voltage release optional
Rated permanent current at AC-23, 400 V
-A
