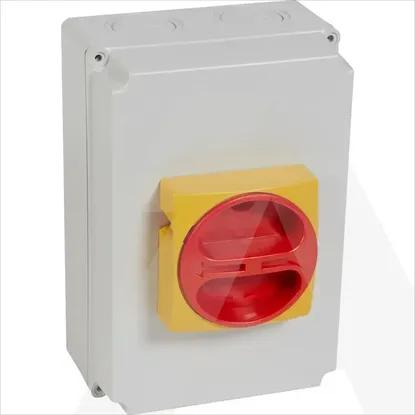

022176 | Rastavna Sklopka 3P 63A N/Z
Code: 1770341
ManufacturerLegrand
Catalog number022176
TypeLegrand 022176
CategorySwitch disconnector
EAN code3245060221768
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Conditioned rated short-circuit current Iq10kA
Rated operating voltage690 - 690V
InterlockableYes
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Number of switches-
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-3, 400 V18.5kW
Type of control elementShort thumb-grip
Version as safety switchYes
Suitable for intermediate mountingNo
Motor drive optionalNo
Rated short-time withstand current lcw1.8kA
Version as maintenance-/service switchYes
Suitable for floor mountingYes
Colour control elementRed
Suitable for distribution board installationNo
Voltage release optionalNo
Rated operation power at AC-23, 400 V22kW
Version as reversing switchNo
Version as main switchYes
Rated permanent current at AC-23, 400 V-A
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Switching power at 400 V25.2kW
Rated permanent current at AC-21, 400 V63A
Suitable for front mounting centreNo
Rated permanent current Iu63A
Number of poles3
Max. rated operation voltage Ue AC690V
