Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq10kA
Rated operation power at AC-3, 400 V22kW
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Voltage release optionalNo
Degree of protection (IP), front sideIP65
Number of switches-
Motor drive optionalNo
Version as emergency stop installationNo
Suitable for intermediate mountingNo
Colour control elementRed
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw2.8kA
InterlockableYes
Motor drive integratedNo
Rated operation power at AC-23, 400 V30kW
Suitable for floor mountingYes
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Type of control elementShort thumb-grip
Rated permanent current at AC-21, 400 V80A
Device constructionComplete device in housing
Switching power at 400 V32kW
Version as safety switchYes
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Rated permanent current Iu80A
Number of poles3
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

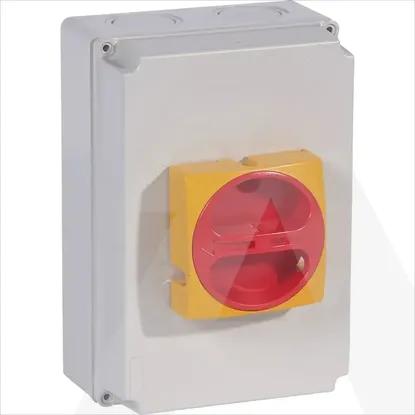

022177 | Rastavna Sklopka 3P 80A N/Z
