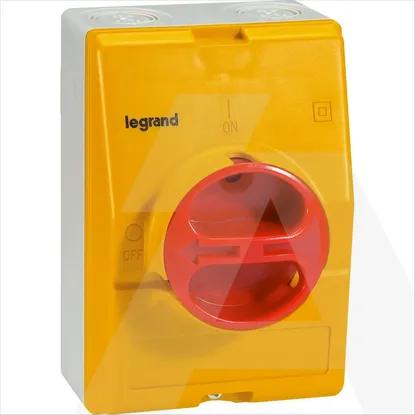

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Motor drive integratedNo
Conditioned rated short-circuit current Iq6kA
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-3, 400 V4kW
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP65
Rated operating voltage690 - 690V
Type of control elementShort thumb-grip
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Version as safety switchYes
InterlockableYes
Rated operation power at AC-23, 400 V7.5kW
Number of switches-
Number of auxiliary contacts as normally open contact0
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw1kA
Colour control elementRed
Suitable for floor mountingYes
Motor drive optionalNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V20A
Rated permanent current at AC-23, 400 V-A
Suitable for distribution board installationNo
Voltage release optionalNo
Suitable for intermediate mountingNo
Device constructionComplete device in housing
Switching power at 400 V8kW
Suitable for front mounting centreNo
Rated permanent current Iu20A
Number of poles4
Max. rated operation voltage Ue AC400V
