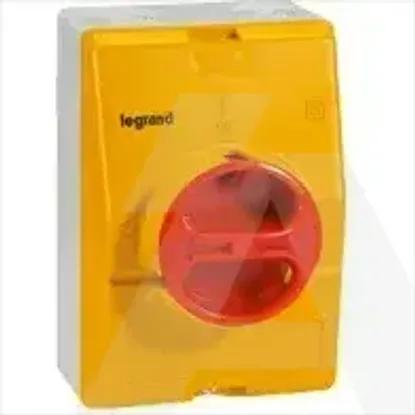

022183 | RASTAVNA SKLOPKA 4P 25A N/Z
Code: 1770346
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of poles4
Type of control elementShort thumb-grip
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu25A
Number of auxiliary contacts as normally open contact0
Device constructionComplete device in housing
Motor drive integratedNo
Motor drive optionalNo
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V5.5kW
Degree of protection (IP), front sideIP65
Suitable for floor mountingYes
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC400V
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq10kA
Rated operation power at AC-23, 400 V7.5kW
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V25A
Voltage release optionalNo
Version as maintenance-/service switchYes
Switching power at 400 V10kW
InterlockableYes
Rated permanent current at AC-23, 400 V-A
Rated short-time withstand current lcw1kA
Version as safety switchYes
Colour control elementRed
Version as emergency stop installationNo
Number of switches-
Version as main switchYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
