Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated operation power at AC-3, 400 V15kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Suitable for front mounting 4-holeNo
Degree of protection (IP), front sideIP65
Suitable for front mounting centreNo
Number of switches-
Version as maintenance-/service switchYes
Rated short-time withstand current lcw1kA
Type of control elementShort thumb-grip
Rated permanent current Iu50A
Rated operation power at AC-23, 400 V18.5kW
Version as safety switchYes
InterlockableYes
Suitable for intermediate mountingNo
Rated operating voltage690 - 690V
Suitable for floor mountingYes
Motor drive integratedNo
Colour control elementRed
Conditioned rated short-circuit current Iq10kA
Number of auxiliary contacts as change-over contact0
Suitable for distribution board installationNo
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Number of poles4
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V50A
Version as reversing switchNo
Voltage release optionalNo
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V20kW
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

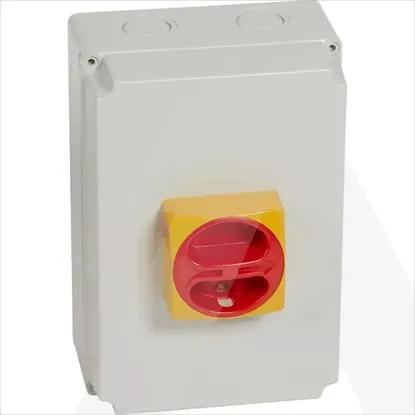

022184 | RASTAVNA SKLOPKA 4P 40A N/Z
