Details
- •Low-voltage industrial components

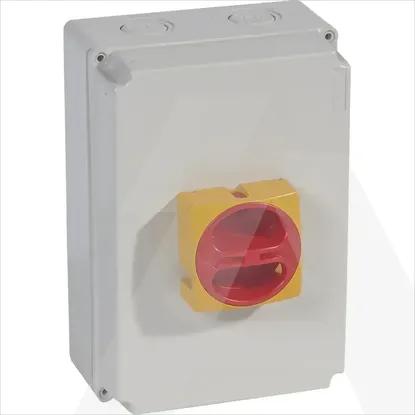

- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of poles4
Degree of protection (IP), front sideIP65
Rated operation power at AC-3, 400 V15kW
Rated permanent current Iu50A
Conditioned rated short-circuit current Iq10kA
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Number of switches-
Suitable for intermediate mountingNo
InterlockableYes
Suitable for distribution board installationNo
Colour control elementRed
Suitable for floor mountingYes
Type of control elementShort thumb-grip
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Motor drive optionalNo
Version as safety switchYes
Rated short-time withstand current lcw1.8kA
Rated permanent current at AC-21, 400 V50A
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Switching power at 400 V20kW
Device constructionComplete device in housing
Rated operation power at AC-23, 400 V18.5kW
Voltage release optionalNo
Rated permanent current at AC-23, 400 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
022185 | RASTAVNA SKLOPKA 4P 50A N/Z
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Number of poles
4
Degree of protection (IP), front side
IP65
Rated operation power at AC-3, 400 V
15kW
Rated permanent current Iu
50A
Conditioned rated short-circuit current Iq
10kA
Number of auxiliary contacts as normally closed contact
0
Rated operating voltage
690 .. 690V
Number of auxiliary contacts as normally open contact
0
Motor drive integrated
Suitable for front mounting centre
Suitable for front mounting 4-hole
Version as emergency stop installation
Version as maintenance-/service switch
Number of switches
-
Suitable for intermediate mounting
Interlockable
Suitable for distribution board installation
Colour control element
Red
Suitable for floor mounting
Type of control element
Short thumb-grip
Max. rated operation voltage Ue AC
690V
Version as reversing switch
Motor drive optional
Version as safety switch
Rated short-time withstand current lcw
1.8kA
Rated permanent current at AC-21, 400 V
50A
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as change-over contact
0
Version as main switch
Switching power at 400 V
20kW
Device construction
Complete device in housing
Rated operation power at AC-23, 400 V
18.5kW
Voltage release optional
Rated permanent current at AC-23, 400 V
-A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
