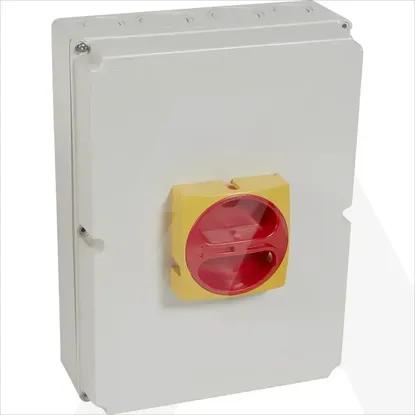

022186 | Rastavna Sklopka 4P 63A N/Z
Code: 1770349
ManufacturerLegrand
Catalog number022186
TypeLegrand 022186
CategorySwitch disconnector
EAN code3245060221867
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated operation power at AC-3, 400 V18.5kW
Number of switches-
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq10kA
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitScrew connection
InterlockableYes
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Version as main switchYes
Rated short-time withstand current lcw1.8kA
Device constructionComplete device in housing
Voltage release optionalNo
Version as maintenance-/service switchYes
Rated permanent current at AC-23, 400 V-A
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Colour control elementRed
Version as safety switchYes
Switching power at 400 V25.2kW
Rated permanent current at AC-21, 400 V63A
Suitable for distribution board installationNo
Version as reversing switchNo
Suitable for floor mountingYes
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V22kW
Rated permanent current Iu63A
Number of poles4
Max. rated operation voltage Ue AC690V
