Details
- •Low-voltage industrial components

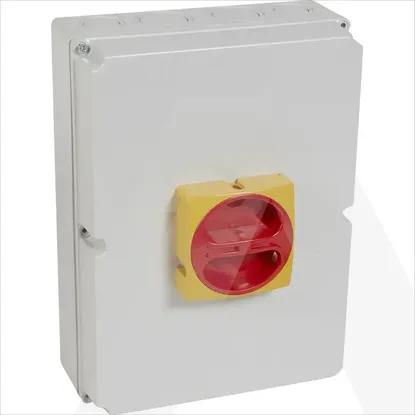

- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated operation power at AC-3, 400 V22kW
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq10kA
Number of auxiliary contacts as normally open contact0
Number of poles4
Rated permanent current Iu80A
Rated operating voltage690 - 690V
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Number of switches-
Rated operation power at AC-23, 400 V30kW
Degree of protection (IP), front sideIP65
Motor drive integratedNo
InterlockableYes
Version as safety switchYes
Version as maintenance-/service switchYes
Rated short-time withstand current lcw2.8kA
Type of control elementShort thumb-grip
Version as main switchYes
Suitable for floor mountingYes
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Colour control elementRed
Suitable for intermediate mountingNo
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V80A
Switching power at 400 V32kW
Voltage release optionalNo
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
022187 | RASTAVNA SKLOPKA 4P 80A N/Z
