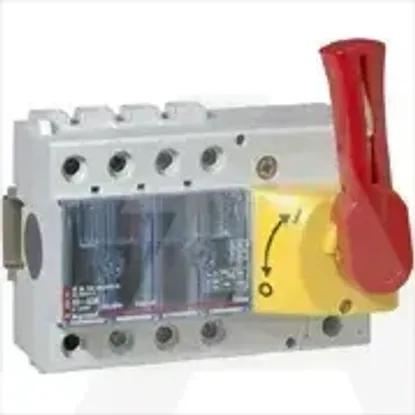

022312 | RASTAVNA SKLOPKA, 3P 63A
Code: 1770367
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of poles3
Type of control elementToggle
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu63A
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Device constructionBuilt-in device fixed built-in technique
Motor drive integratedNo
Motor drive optionalNo
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-3, 400 V-kW
Degree of protection (IP), front sideIP2X
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Conditioned rated short-circuit current Iq7kA
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Rated operation power at AC-23, 400 V35kW
Suitable for front mounting 4-holeYes
Suitable for front mounting centreYes
Version as reversing switchNo
Rated permanent current at AC-21, 400 V63A
Voltage release optionalNo
Version as maintenance-/service switchYes
Switching power at 400 V35kW
InterlockableYes
Rated permanent current at AC-23, 400 V-A
Rated short-time withstand current lcw2.5kA
Version as safety switchYes
Colour control elementRed
Version as emergency stop installationYes
Number of switches-
Version as main switchYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
