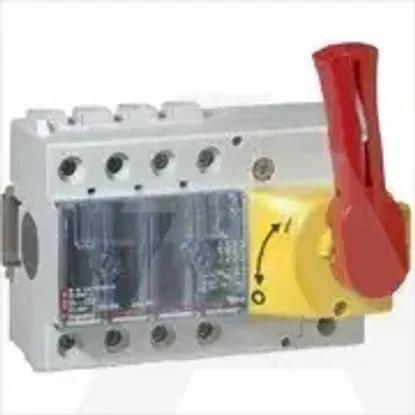

022315 | Rastavna Sklopka, 4P 63A
Code: 1770368
ManufacturerLegrand
Catalog number022315
TypeLegrand 022315
CategorySwitch disconnector
EAN code3245060223151
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq7kA
Rated operating voltage690 - 690V
Number of switches-
Colour control elementRed
Suitable for intermediate mountingNo
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Type of control elementToggle
Voltage release optionalNo
InterlockableYes
Rated short-time withstand current lcw2.5kA
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP2X
Rated operation power at AC-23, 400 V35kW
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Motor drive optionalNo
Suitable for front mounting centreYes
Version as emergency stop installationYes
Motor drive integratedNo
Version as main switchYes
Suitable for distribution board installationYes
Version as safety switchYes
Rated permanent current at AC-21, 400 V63A
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V35kW
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Rated permanent current Iu63A
Number of poles4
Max. rated operation voltage Ue AC690V
