Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of switches-
Type of control elementToggle
Suitable for floor mountingNo
Conditioned rated short-circuit current Iq7kA
Version as main switchYes
Rated permanent current Iu63A
Version as maintenance-/service switchYes
InterlockableYes
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Rated operating voltage690 - 690V
Number of poles3
Degree of protection (IP), front sideIP2X
Rated operation power at AC-23, 400 V35kW
Rated operation power at AC-3, 400 V-kW
Version as safety switchYes
Rated short-time withstand current lcw2.5kA
Colour control elementRed
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationYes
Suitable for distribution board installationYes
Suitable for front mounting centreYes
Suitable for front mounting 4-holeYes
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingNo
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Version as reversing switchNo
Switching power at 400 V35kW
Rated permanent current at AC-21, 400 V63A
Rated permanent current at AC-23, 400 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

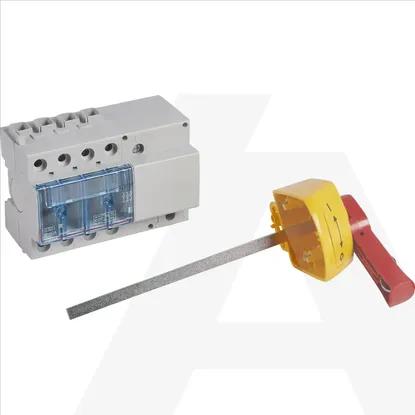

022316 | RASTAVNA SKLOPKA, 3P 63A
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Number of switches
-
Type of control element
Toggle
Suitable for floor mounting
Conditioned rated short-circuit current Iq
7kA
Version as main switch
Rated permanent current Iu
63A
Version as maintenance-/service switch
Interlockable
Type of electrical connection of main circuit
Screw connection
Motor drive integrated
Rated operating voltage
690 .. 690V
Number of poles
3
Degree of protection (IP), front side
IP2X
Rated operation power at AC-23, 400 V
35kW
Rated operation power at AC-3, 400 V
-kW
Version as safety switch
Rated short-time withstand current lcw
2.5kA
Colour control element
Red
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Version as emergency stop installation
Suitable for distribution board installation
Suitable for front mounting centre
Suitable for front mounting 4-hole
Max. rated operation voltage Ue AC
690V
Suitable for intermediate mounting
Motor drive optional
Device construction
Built-in device fixed built-in technique
Voltage release optional
Version as reversing switch
Switching power at 400 V
35kW
Rated permanent current at AC-21, 400 V
63A
Rated permanent current at AC-23, 400 V
-A
